SPECIFICATIONS

AI Functions: Pet Detection

App Name: Reolink

App name: other

Audio: Two-way audio

Audio Output: Two Way Audio

Battery of Cam: 5000mAh rechargeable battery

Brand Name: Reolink

Certification: CE,FCC,RoHS,weee

Client Name: Reolink

Color: WHITE

Color Night Vision: Yes,With spotlights: 3pcs/2W/6500K

Connectivity: WIFI(Dual-Band)

Dimensions (L x W x D)(mm): 128*87*80mm

Field of view of Cam: Horizontal: 180° Vertical: 50°

High Definition: 8.0 Megapixels

Hign-concerned Chemical: None

Home Hub Compatibility: YES

IP Rating: other

IR Distance(m): No

Image Sensor of Cam: 1/1.8" CMOS sensor

Installation: Normal,Wall Mounted,Vertical Pole Mount

Internal Storage: None

Lens (mm): 4mm

Lens Quantity: Dual Lens

Lens of Cam: Two lens, f=4mm, fixed

Megapixels: 8MP

Minimum Illumination(Lux): 100

Model Number: Argus 4 Series

Movement Range(Tilt): other

OS Supported: PC: Windows, Mac OS; Smartphone: iOS, Android

Operating Frequency: 2.4GHz/5GHz

Operating Humidity: 20% ~ 85%

Operating Temperature: -10°-55°,-10 to 55° C (14 to 131° F)

Origin: Mainland China

PIR Detecting Angle: 170° horizontal

PIR Detecting Distance: Adjustable, up to 10m (33ft)

Power Consumption(W): 18Wh

Power Mode: Battery Powered

Power Port of Cam: USB Type-C port

Power Supply: Normal

Power Supply(V): 5V/2A

Protocols & Standards: SSL, TCP/IP, UDP, UPNP, SMTP, NTP, P2P,SSL, TCP/IP, UDP, UPNP, SMTP, NTP, P2P

Rechargeable Battery: Built in

Rechargeable Battery Capability: other

Recommended application scenarios: Barn, porch, warehouse, courtyard, garage, etc.

Record Mode: Triggered recording

Recording Modes: Triggered recording

Reset Button: YES

SD Card Slot: Supports Max. 512GB microSD card(not include)

Scene: Indoor and outdoor

Sensor: CMOS

Sensor Brand: Omnivision

Smart Alarm: PIR detection; motion detection; person detection; vehicle detection; animal detection

Smart home platform: other,alexa,Google Assistant

Solar: Reolink Solar Panel 2 (6W)

Style: Cube Camera

Supported Mobile Systems: Android,iOS

Supported Operating Systems: Windows 7,Mac OS,Windows 8,Windows 10

TF Card: None

Time Lapse: YES

Video Compression Format: H.264,H.265

Video Format: Clear(H.265)/Other(H.264)

Video Resolution of Cam: 5120x1440 (8 megapixels) @15fps

Viewing Angle : 180°

Waterproof: IP66

Weight (Only the camera): 400g

Wireless Security: WPA/WPA2/WPA3

Wireless Standard: IEEE 802.11 a/b/g/n/ac/ax

Work with: Alexa,Google Assistant, Reolink Cloud, Reolink Home Hub

Zoom: 10X

Zoom type: Digital zoom

is_customized: No

Supports Wi-Fi 6

Supports 5/2.4 GHz Dual-Band Wi-Fi & Wi-Fi 6, Reolink HomeHub Series products are currently compatible with all Reolink PoE cameras, Plug-in Wi-Fi cameras, and most recently released battery Wi-Fi cameras except 2MP battery cameras and 4G cameras.

4K UHD 180° Blindspot-free View

Dual-image stitching produces smooth images, with minimal distortion, at a 180° FOV which is over double the field of view of a standard single-lens FOV camera.

Color Vision Day and Night

Experience full-color night vision with Reolink ColorX technology. Featuring an F/1.0 aperture lens and a 1/1.8" CMOS sensor, this camera captures 4x more light for vivid, true-to-life details even in low-light conditions.

Spotlight-free

A refined approach to night surveillance, it captures detailed images without relying on spotlights.

Stay Unobtrusive

Without fill-in lights, it stays unnoticed at night. No more false alarms from curious critters.

Maximized Efficiency by Design, 30% More Battery Life

Based on Reolink laboratory testing data, you'll save 2W/h per hour and get up to 12 extra days of standby time. Experience extended performance and eco-friendliness simultaneously.

*Disclaimer: comparing with IR 4K resolution camera at night condition in lab test

Enhanced Smart Detection, More Accurate Alerts

The camera comes with a 180° ultra-wide-angle Passive Infrared (PIR) sensor that works in harmony with its wide field of view. Ensuring comprehensive detection coverage.

Customized Security

Customize motion zones and set privacy masks to suit your security needs.

Diverse Local Storage

Supports microSD cards (up to 512GB, not included), FTP servers, and Home Hub (up to 1TB supported)

Compact Design, Easy Installation Anywhere

IP66 weatherproof rating makes the camera perfect for outdoor installation. Being battery-powered, it has Wi-Fi connectivity, so there is no need for ethernet cables.*This feature is only available for cameras and Home Hub.

Extra Features

How to connect the Home Hub with the Camera

Step1: Set up the Home Hub, connect the Hub to power, and then connect it to the router.

Step2: Initialize the Home Hub, connect your phone to the same Wi-Fi network as the hub. Open the Reolink App and follow the on-screen instructions.

Step3: Add the Cameras, Method 1: Add from the device list in LAN; Method 2: Scan the QR code to add.

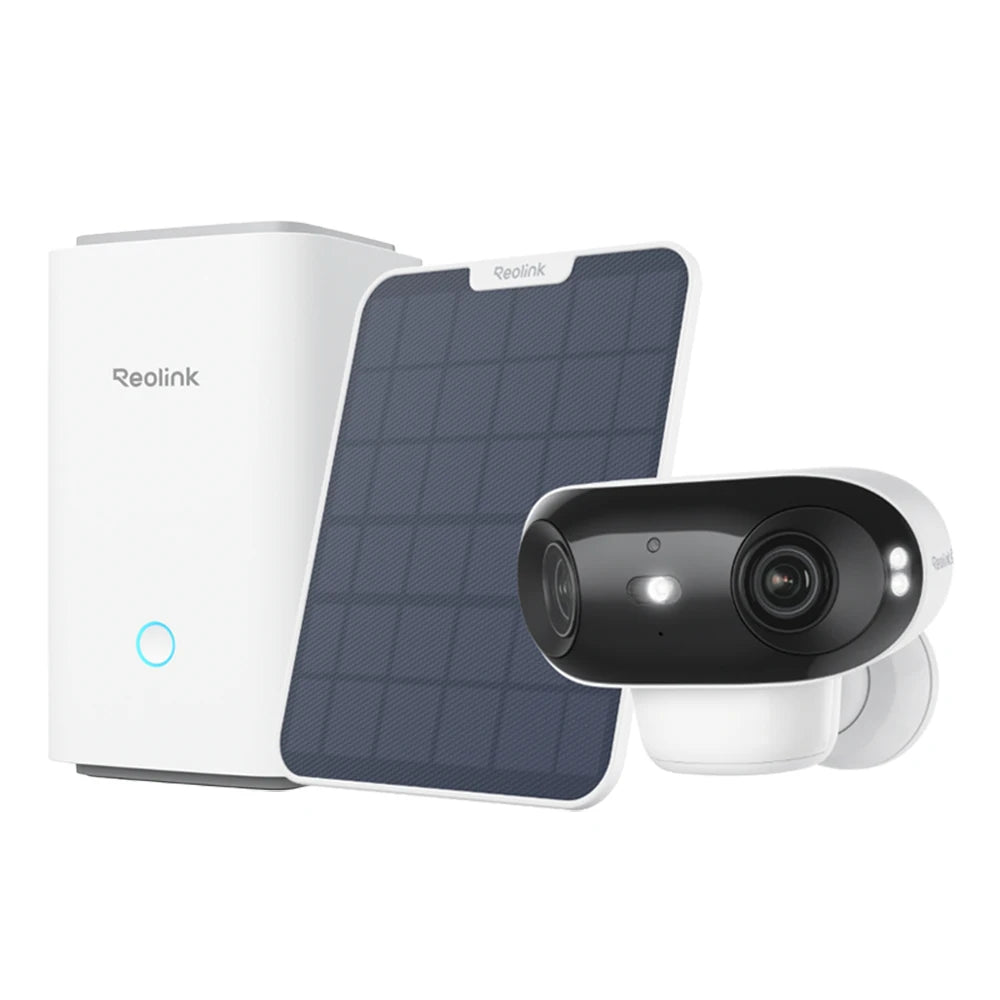

Product Details & Packing List of Cam Add Solar

*The only cam option don't include the solar panel

Product Details & Packing List of Home Hub
